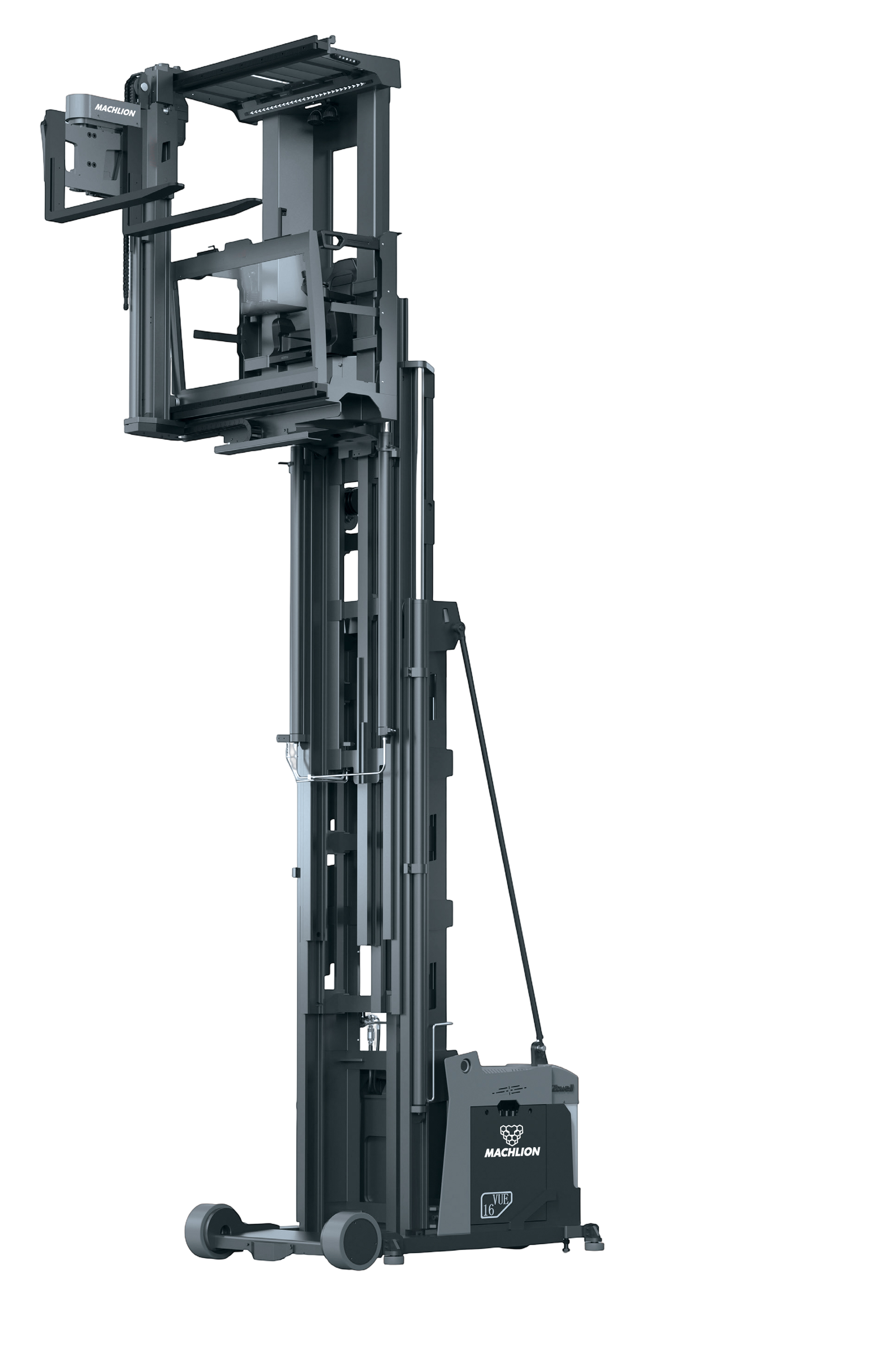

ELECTRIC MAN-UP THREE-WAY VNA FORKLIFT ML-VUE SERIES 1.6T
- Series: ML-VUE
- Models: ML-VUE116
- Brand: MACHLION
- Load Capacity: 1,600 kg
- Load Center: 600 mm
- Operation: Man-Up / Seated, Three-Way Stacking & Picking
- Lift Height Range: Up to 18,000 mm (model/configuration dependent)
- Working Aisle Width: 1,750-1,850 mm, model dependent
Genuine Quality
ISO CertifiedGlobal Shipping
Fast & Secure24/7 Support
Expert AssistanceAfter-Sales Service
Parts & Maintenance01 — Product Description
The MACHLION ML-VUE Series is an electric man-up three-way VNA forklift range developed for high-density pallet storage, high-level stacking and order picking. All listed models are rated at 1,600 kg with a 600 mm load center, while lift-height configurations extend 18000 mm for super-high-bay warehouse operations.
The operator travels upward with the cab, allowing direct visibility and access during both stacking and picking. Side-shifting and 180-degree rotating forks allow pallet handling on either side of the aisle without turning the complete truck. Depending on model, working aisle requirements are approximately 1.75-1.85 m, supporting intensive use of both floor area and vertical storage space.
02 — Applications & Suitability
The ML-VUE Series is designed for facilities where very narrow aisles, high-level pallet handling and combined stacking/picking capability are central to warehouse productivity.
03 — Key Features
The operator cab elevates with the load-handling system, supporting direct visibility and convenient high-level picking as well as pallet stacking.
Side shift and 180-degree fork rotation enable pallet handling on both sides of the aisle without changing the truck direction.
The combined series covers lift heights 1.8 m, including configurations for demanding high-bay storage.
Working aisle requirements of approximately 1.75-1.85 m help reduce non-storage floor area and increase storage density.
Left/right view and rear-view camera systems support clearer observation around the truck during narrow-aisle and high-level operation.
A semi-enclosed spacious cab, leather seat, electric steering display, safety pedal and integrated controls support operator comfort and control.
Electric power steering, AC control and joystick-based functions support smooth travel, lifting and fork operation.
Emergency stop, protective grille-door functions, regenerative/electromagnetic braking and emergency lowering features support safer operation.
The supplied VUE material highlights floating drive-wheel and uneven-ground adaptation functions for stability in demanding warehouse conditions.
