ELECTRIC MAN-DOWN SEATED VNA FORKLIFT ML-VDSE SERIES 1.6T
- Series: ML-VDSE
- Models: ML-VDSE116
- Brand: MACHLION
- Rated Load: 1,600 kg
- Operation Type: Man-Down, Seated
- Lift Height: Up to 12,000 mm (model/configuration dependent)
- Minimum Working Aisle: 1,650 mm
- Fork Rotation: 180°
Genuine Quality
ISO CertifiedGlobal Shipping
Fast & Secure24/7 Support
Expert AssistanceAfter-Sales Service
Parts & Maintenance01 — Product Description

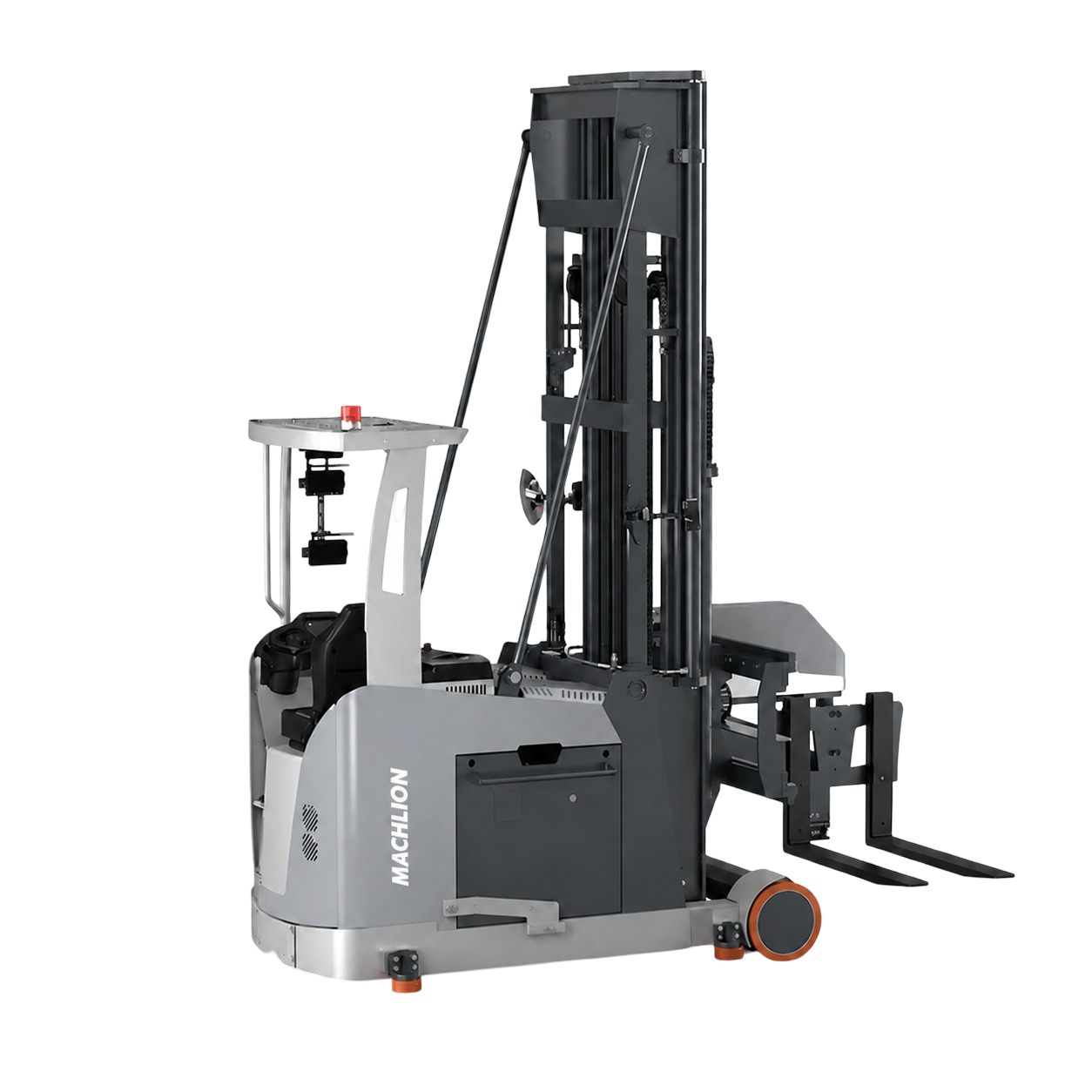

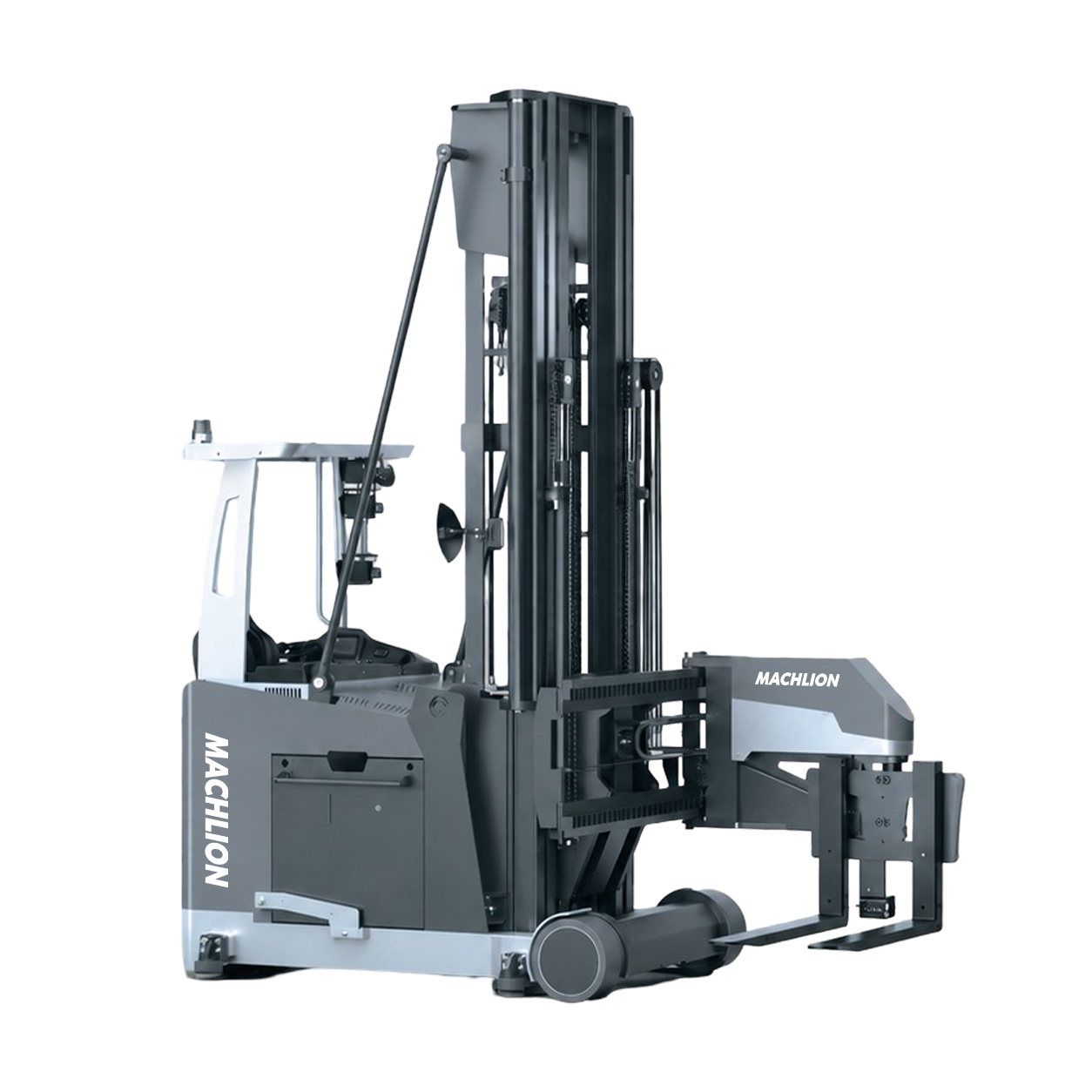

The MACHLION ML-VDSE Series is a man-down seated very narrow aisle (VNA) forklift designed for high-density pallet stacking and retrieval in space-constrained warehouses. With a rated load capacity of 1,600 kg, 180-degree fork rotation and a minimum working aisle of approximately 1.65 m, the series enables efficient pallet handling without requiring conventional forklift turning inside the aisle.
The seated operator compartment is developed for greater comfort during intensive warehouse operation, while electric power steering, camera-assisted fork monitoring and multiple active safety protections support precise control. The broader VDSE series is presented by the manufacturer with lift-height capability from up to 12 m.
02 — Applications & Suitability
The ML-VDSE Series is suitable for operations that require high-bay pallet handling, maximum storage density and improved operator comfort in very narrow aisle layouts.
03 — Key Features
A seated operator compartment improves comfort for repeated and longer-duration VNA handling tasks.
The fork can rotate 180 degrees for pallet handling on both sides of the aisle without turning the complete truck.
A minimum working aisle of approximately 1.65 m helps improve warehouse space utilization and storage density.
The VDSE platform is presented with lift-height options up to 12 m
The fork monitoring display presents camera images to help the operator position the forks more accurately at height.
Electric power steering is designed for energy efficiency, adjustable steering force and intuitive directional control.
Forward/reverse switches, hydraulic finger controls, horn, USB interface, parking/lighting switch, pedals and emergency stop are arranged around the seated operating position.
The truck incorporates multiple active safety protections together with electromagnetic and regenerative braking functions.
